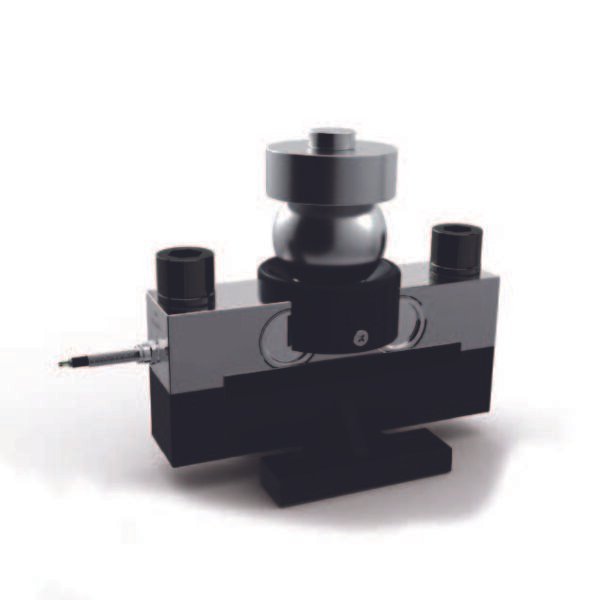

TYZQ-A [10t-40t]
INTRODUCTION
It can be used in various measuring equipment such as truck scales,
rail scales, and hoppers.
| SPECIFICATION (规格参数) | |
|---|---|
| Rated Load | 10t, 20t, 30t, 40t |
| Rated Output | 2.00000 ± 0.001 mV/V |
| Total Error | ±0.02%F.S |
| Creep (30 minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V ~ 18V (AC or DC) |
| Maximum Excitation Voltage | 24V (AC or DC) |
| Input Impedance | 775 ± 50 Ω |
| Output Impedance | 700 ± 20 Ω |
| Insulation Impedance | ≥ 5000 MΩ |
| Safe Overload | 150% F.S |
| Ultimate Overload | 200% F.S |
| Operating Temperature Range | -30 ~ +70 ℃ |
| Temperature Effect On Load | ±0.02%F.S / 10℃ |
| Temperature Effect On Zero | ±0.02%F.S / 10℃ |
| Construction | Alloy Steel (合金钢) |
| Protection Class | IP68 & IP67 |
| Citation (Standard) | GB/T7551-2008 / OIML R60 |
| Cable Length | Ø6, 12m / 16m |
| Mode of Connection |
Input +: Red Input -: Black Output +: Green Output -: White |
