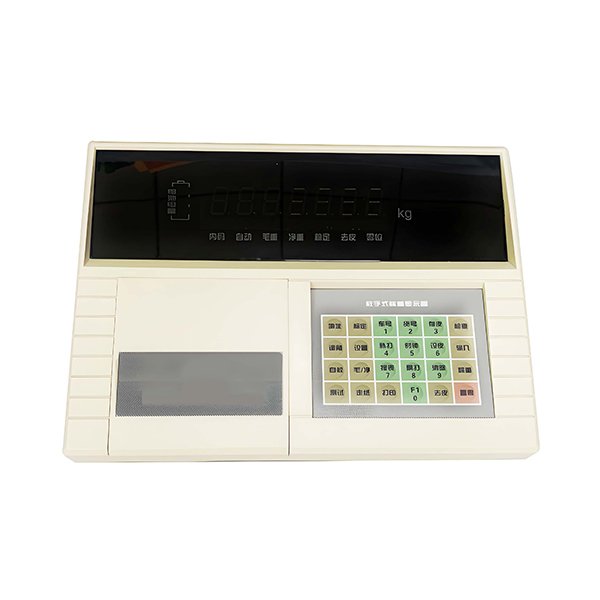

TXK3190-DS3
FEATURES
• AC/DC power supply
• Interface adopts new magnet-proof technology
• With optional interface
(a) Printing data separate module
(b) Digital output module
(c) 4-20mA module
INTRODUCTION
Weighing indicator XK3190-DS3 is widely applied in electronic fioor scale、
electronic truck scale 、static railway scale and so on alike siaticweighing system
equipped with 1-16 digital load cell.
| SPECIFICATION | |
|---|---|
| Digital load cell connection | |
| Connection method | RS485, compatible for both four and six wires |
| Connection distance | About 1000 meters |
| Connection quantity | 1 ~ 16 cells |
| Load cell power | DC 12V, 0.8A (Max) |
| Display method | 7 bits super bright LED display, 10 indications |
| Clock | Real clock |
| Scoreboard interface signal | 20mA current loop, serial; Baud rate: 600; Transmission distance: ≤ 2000 meters |
| Available for wide line printer | LQ-300K, KX-P1131, KX-P1121, DS-300 |
| Thermal micro-printer | POS58, T58D; Optional panel type micro printer |
| Standard serial interface | RS232C (RS422/RS485 optional) |
| Power supply (AC) | AC 187-242V; 49-51Hz |
| DC power supply | (Outside) rechargeable 12V battery |
