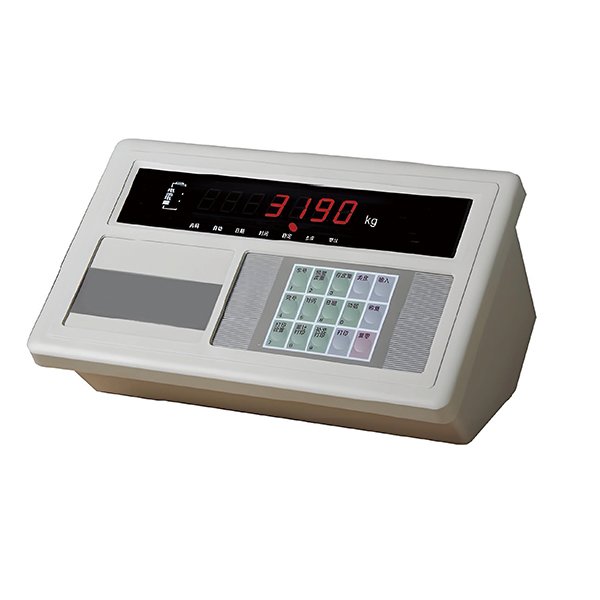

TXK3190-A9+
FEATURES
• Compatible with all functions of model XK3190-A9
• Σ-A high precision AD conversion method, able to process
inputsignal from -16mV to 18mV
• Good consistency, no need to re-calibrate a scale if change the
former indicator, high precision
• DC power socket with anti-connect and anti-short circuit protection
• With strong anti-disturbance function
INTRODUCTION
Weighing indicator XK3190-A9* adopts high precision Σ-Δ A/D conversion
tachnalogy, widely applied in elecironic fibor scale, electronic fruck scaleand so on
alike static weiahing system equipped with 1~8 load cell.
| SPECIFICATION | |
|---|---|
| A/D conversion method | $\Sigma-\Delta$ |
| Input signal range | -16mV ~ 18mV |
| A/D conversion speed | 10 times/sec. |
| A/D conversion code | 1 million code |
| Load cell excitation | DC 5V |
| Max. connection number of load cell | 8 at 350 ohm / 16 at 700 ohm |
| Load cell connection mode | 6 wire, auto compensation for long distance |
| Division | 1/2/5/10/20/50/100 optional |
| Clock | Real clock without effect when power off |
| Transmission | Current loop / RS 232 signal |
| Baud rate | 600 |
| Transmission distance | $\le 30$ meters |
| Serial communication | Interface |
| Transmission method | RS232 / RS422(optional) / RS485(optional) |
| Baud rate (Serial) | 600/1200/2400/4800/9600(optional) |
| Transmission distance (Serial) | RS232: $\le 30$ meters; RS422/RS485: $\le 1200$ meters |
| Standard parallel output interface | |
| Built-in micro-printer (A9+P) | |
| Data storage | 1000 truck records consisting of truck ID and corresponding tare weight; 201 cargo ID; 1001 weighting records |
| Power supply | AC 220V (-15% ~ +10%); 50Hz (-2% ~ +2%); DC 6V/10Ah External battery rechargeable |
