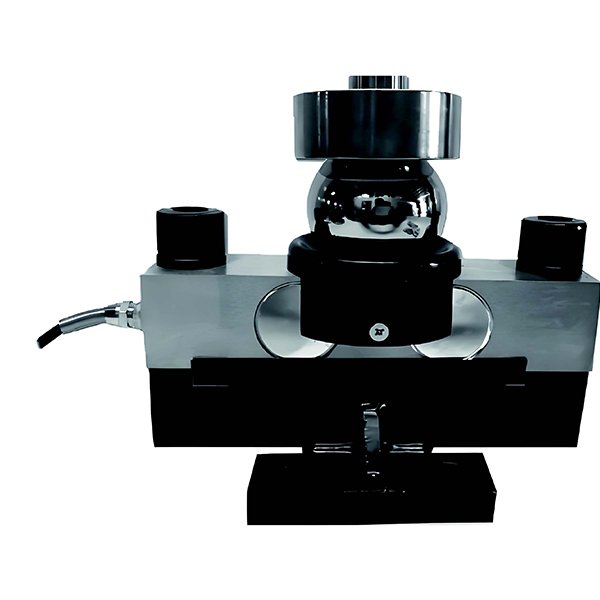

TLY-QS

TLY-QS

FEATURES
• good side force resistance and shockresistance.
• Moisture proof sealed,ideal for hostileenvironment.
• goodinterchangeability suitable for electronic truck scale,
railroadscale,hopper scale and various special scales.
Cable
16m
Wiring method
+Exc(Red);-Exc(Black);+Sig(Green);-Sig(White)

SKU: LOAD CELLS 033 Category: LOAD CELLS

SPECIFICATION
Capacity	10、20、25、30、40t	Zero balance	±1%F.S
Rated output	2.0 ± 0.005 mv/v	Input resistance	750 ± 5Ω
Accuracy class	C3	Output resistance	700 ± 2Ω
Non-linearity	0.02%F.S	Safe overload	150%F.S
Hysteresis	0.02%F.S	Ultimate overload	200%F.S
Creep in 30 minutes	0.02%F.S	Excitation voltage	10V AC/DC
Temperature effect span	0.015%F.S/10℃	Maximum excitation voltage	15V AC/DC
Temperature effect zero	0.02%F.S/10℃	Insulation resistance	≥ 5000 MΩ
Compensated temperature range	-10 ~ +40℃	Environmental protection	IP67
Operating temperature range	-40 ~ +65℃	Material	Alloy steel
