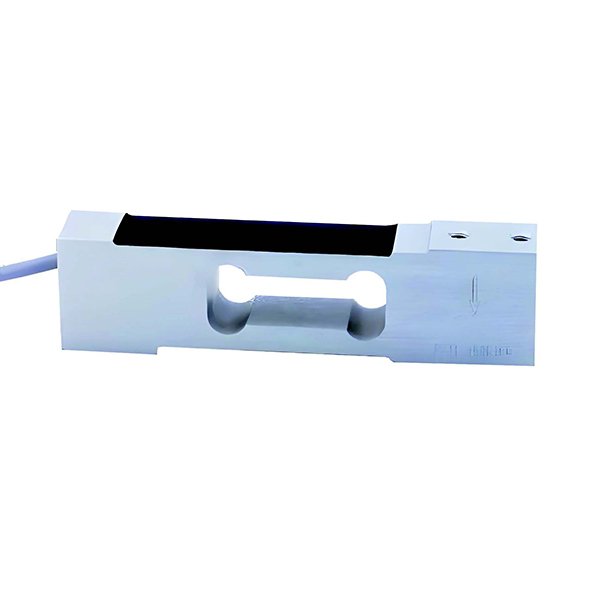

TL6N
FEATURES
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for single or double load cell structured platform scales
• Maximum platform size: 400 x 400 mm
| AVAILABLE MODELS | ||
|---|---|---|
| 3kg – 100kg | Cx (C3 / C4 / C5) | L6N-Cx-xxkg-3B6/3YB6 |
| SPECIFICATION DATA | ||||
|---|---|---|---|---|
| Accuracy class | Unit | C3 | C4 | C5 |
| Maximum capacity (Emax) | kg | 3 / 5 / 8 / 10 / 15 / 20 / 30 / 40 / 50 / 75 / 100 | ||
| Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 | ||
| Combined error | %FS | ± 0.02 | ± 0.015 | ± 0.01 |
| Creep (30 minutes) | %FS/30min | ± 0.0167 | ± 0.0125 | ± 0.01 |
| Temperature effect on sensitivity | %FS/10℃ | ± 0.0175 | ± 0.0131 | ± 0.01 |
| Temperature effect on zero | %FS/10℃ | ± 0.02 | ± 0.012 | ± 0.009 |
| Zero balance | %FS | ± 2 | ||
| Compensated temperature | ℃ | -10 ~ 40 | ||
| Operating temperature | ℃ | -35 ~ +65 | ||
| Input resistance | Ω | 406 ± 6 | ||
| Output resistance | Ω | 350 ± 3 | ||
| Insulation resistance | MΩ | ≥ 5000 (50VDC) | ||
| Excitation, recommended voltage | V | 5 ~ 12 (DC) | ||
| Excitation maximum | V | 18 (DC) | ||
| Safe overload | %FS | 120 | ||
| Ultimate overload | %FS | 150 | ||
| Protection Class | IP65 | |||
| Cable SPECIFICATIONS | mm | Φ 4.8 | ||
| Cable Length | m | 3 | ||
| Recommended installation size | mm | 400 × 400 | ||
| Corner correction | 0.02% load value/100mm | |||
| Recommended torque on fixation | N.m | 10 | ||
* Swipe left to view full accuracy specifications →
