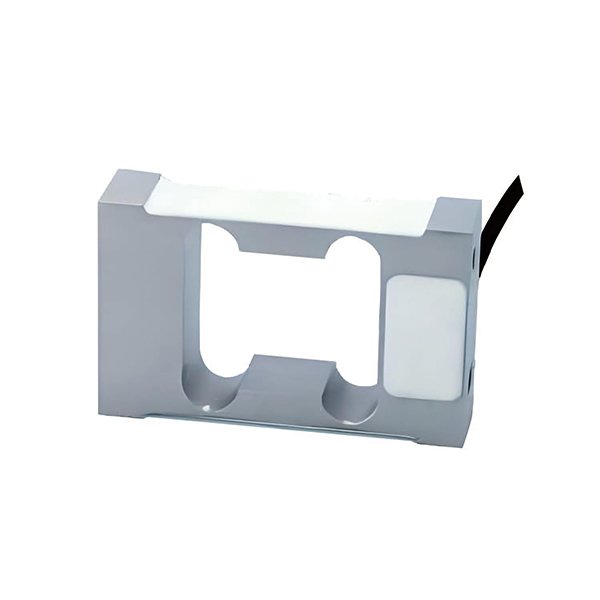

TL6H5
FEATURES
• Aluminium-Alloy IP65 single point load cell
• Colourless anodized
• Suitable for single or double load cell structured platform scales
• Recommended platform size: 200 x 200 mm
| AVAILABLE MODELS | ||
|---|---|---|
| Capacity | Accuracy | Full article description |
| 4 kg / 5 kg / 6 kg / 8 kg | C3 | L6H5-C3-xxkg-0.5B |
| 10 kg / 20 kg / 30 kg | C3 | L6H5-C3-xxkg-0.5B |
| SPECIFICATION DATA | ||
|---|---|---|
| Accuracy class | OIML R60 C3 | |
| Output sensitivity (=FS) | mV/V | 2.0 ± 0.2 |
| Maximum capacity (Emax) | kg | 4/5/6/8/10/15/20/30 |
| Max. number of LC intervals (nLC) | 3000 | |
| Ratio of min LC verification interval Y=Emax / Vmin | 15000 | |
| Combined error | %FS | ± 0.02 |
| Minimum dead load | %FS | 0 |
| Safe overload | %FS | 120 |
| Ultimate overload | %FS | 150 |
| Zero balance | %FS | ± 2.0 |
| Excitation, recommended voltage | V | 5 ~ 12 (DC) |
| Excitation maximum | V | 18 (DC) |
| Input resistance | Ω | 406 ± 6 |
| Output resistance | Ω | 350 ± 3 |
| Insulation resistance | MΩ | ≥ 5000 (50VDC) |
| Compensated temperature | ℃ | -10 ~ +40 |
| Operating temperature | ℃ | -35 ~ +65 |
| Storage temperature | ℃ | -40 ~ +70 |
| Element material | Aluminium | |
| Recommended torque on fixation | N.m | M8: 25 |
| Ingress protection (EN 60529) | IP65 | |
