TL6G

TL6G

FEATURES

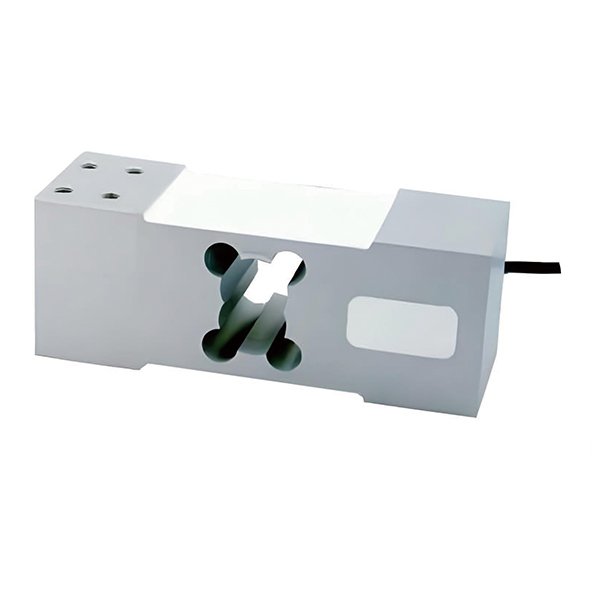

• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for single and double load cells structured platform scales.
• Maximum platform size: 600 x 600 mm
• A 1000 Ohm type available (R1) but is excluded from OIML

SKU: LOAD CELLS 030 Category: LOAD CELLS

AVAILABLE MODELS
Capacity	Accuracy	Full article description
50 kg / 100 kg	C3	L6G-C3-xxkg-3G6
150 kg / 200 kg / 250 kg	C3 / C4	L6G-C3/C4-xxkg-3G6
300 kg / 500 kg / 600 kg	C3 / C4	L6G-C3/C4-xxkg-3G6

SPECIFICATION
Accuracy class	Unit	OIML R60 C3	OIML R60 C4
Output sensitivity (=FS)	mV/V	2.0 ± 0.2
Maximum capacity (Emax)	kg	50/100/150/200/250/300/500/600	150/200/250/300/500/600
Max. number of LC intervals (nLC)		3000	4000
Ratio of minimum LC verification interval Y		10000	15000
Combined error	%FS	± 0.02	± 0.0150
Minimum dead load	kg	0
Safe overload	%FS	120
Ultimate overload	%FS	150
Zero balance	%FS	± 2.0
Excitation, recommended voltage	V	5 ~ 12 (DC)
Excitation maximum	V	18 (DC)
Input resistance	Ω	406 ± 6
Output resistance	Ω	350 ± 3
Insulation resistance	MΩ	≥ 5000 (50VDC)
Compensated temperature	℃	-10 ~ +40
Operating temperature	℃	-35 ~ +65
Storage temperature	℃	-40 ~ +70
Element material	Aluminium
Recommended torque on fixation	N.m	M8: 25
Ingress protection (EN 60529)	IP65
