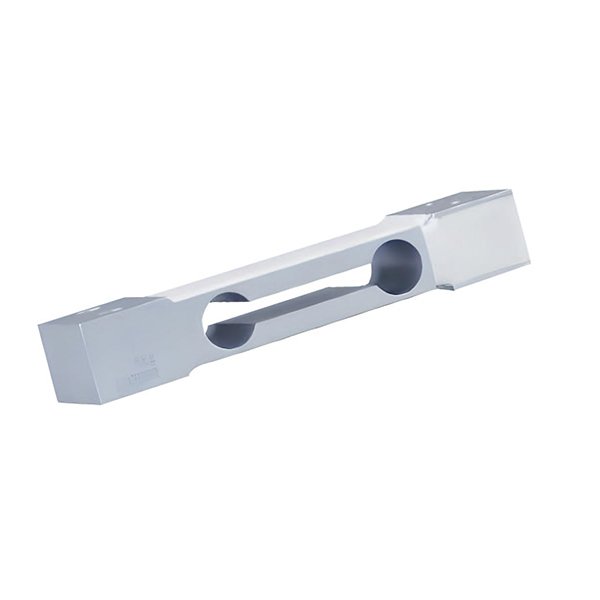

TL6D

TL6D

FEATURES
• Aluminium-Alloy IP65 single point load cell
• Colourless anodized
• Suitable for pricing scales, bench scales, etc.
• Maximum platform size: 250 x 350 mm

SKU: LOAD CELLS 026 Category:
AVAILABLE MODELS
Capacity Accuracy Full article description
2.5 kg C3 (Excluded from OIML) L6D-C3-2.5kg-0.4B
3 kg / 5 kg / 6 kg / 8 kg C3 / C4 / C5 L6D-C3/C4/C5-xxkg-0.4B
10 kg / 15 kg / 20 kg C3 / C4 / C5 L6D-C3/C4/C5-xxkg-0.4B
30 kg / 35 kg / 40 kg / 50 kg C3 / C4 / C5 L6D-C3/C4/C5-xxkg-0.4B
SPECIFICATION DATA
Accuracy class Unit C3 OIML R60 C3 OIML R60 C4 OIML R60 C5
Output sensitivity (=FS) mV/V 2.0 ± 0.2
Maximum capacity (Emax) kg 2.5 3 / 5 / 6 / 8 / 10 / 15 / 20 / 30 / 35 / 40 / 50
Max. load cell intervals (nLC) 3000 3000 4000 5000
Min verification interval Y=Emax/Vmin 10000 10000 15000 20000
Combined error %FS ± 0.02 ± 0.0150 ± 0.01
Minimum dead load %FS 0
Safe overload %FS 120
Ultimate overload %FS 150
Zero balance %FS ± 2.0
Input resistance Ω 406 ± 6
Output resistance Ω 350 ± 3
Operating temperature ℃ -35 ~ +65
Element material Aluminium
Recommended torque on fixation N.m < 30kg: 6 / ≥ 30kg: 10
Ingress protection (EN 60529) IP65

* Swipe left to view full accuracy specifications →
