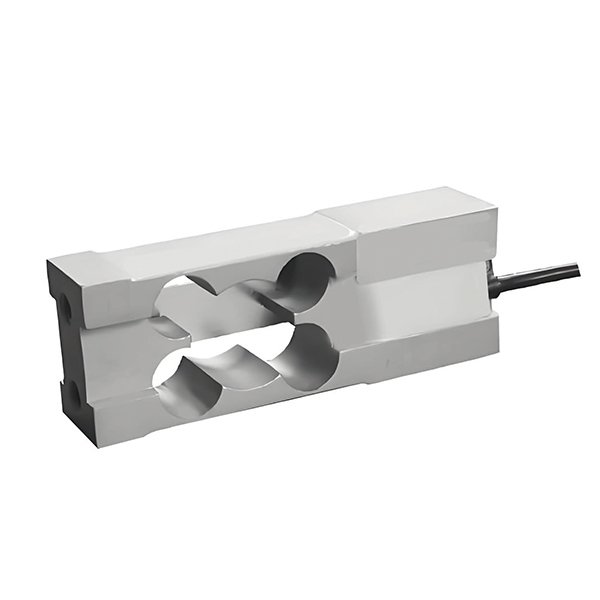

TL6C
FEATURES
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for counting and other electronic scales
• Maximum platform size: 350 x 450 mm
| AVAILABLE MODELS | ||
|---|---|---|
| Capacity | Accuracy | Full article description |
| 3 kg / 5 kg / 8 kg | C3D / C3 | L6C-C3D/C3-xxkg-2B |
| 20 kg / 30 kg / 50 kg | C3D / C3 | L6C-C3D/C3-xxkg-2B |
| SPECIFICATION DATA | |||
|---|---|---|---|
| Accuracy class | Unit | C3D | C3 |
| Output sensitivity (=FS) | mV/V | 1.9 ± 0.2 | |
| Maximum capacity (Emax) | kg | 3 / 5 / 8 / 20 / 30 / 50 | |
| Max. load cell intervals (nLC) | 2500 | 3000 | |
| Ratio of min verification interval (Y) | 5000 | 10000 | |
| Combined error | %FS | ± 0.0280 | ± 0.0200 |
| Safe overload | %FS | 120 | |
| Ultimate overload | %FS | 150 | |
| Zero balance | %FS | ± 2.0 | |
| Excitation, recommended voltage | V | 5 ~ 12 (DC) | |
| Excitation maximum | V | 18 (DC) | |
| Input resistance | Ω | 406 ± 6 | |
| Output resistance | Ω | 350 ± 3 | |
| Insulation resistance | MΩ | ≥ 5000 (50VDC) | |
| Compensated temperature | ℃ | -10 ~ +40 | |
| Operating temperature | ℃ | -35 ~ +65 | |
| Element material | Aluminium | ||
| Recommended torque on fixation | N.m | 20 | |
| Ingress protection (EN 60529) | IP65 | ||
