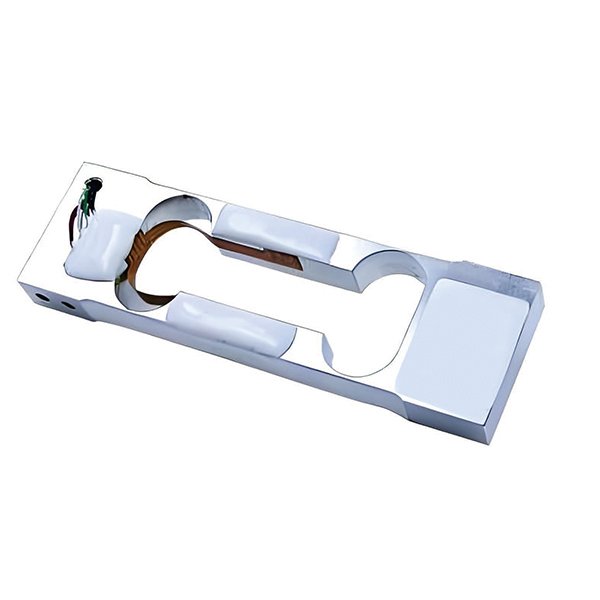

TL6B
FEATURES
• Aluminium-alloy IP65 single point load cell.
• Colourless anodized
• Suitable for pricing scales, bench scales, etc.
• Recommended platform size: 200 x 200mm
| AVAILABLE MODELS | ||
|---|---|---|
| Capacity | Accuracy | Full article description |
| 0.3 kg / 0.6 kg | L / H | L6B-L/H-xxkg-0.4B |
| 1.0 kg / 1.2 kg | L / H | L6B-L/H-xxkg-0.4B |
| 1.5 kg / 3.0 kg | L / H | L6B-L/H-xxkg-0.4B |
| SPECIFICATION DATA | |||
|---|---|---|---|
| Accuracy class | Unit | L | H |
| Output sensitivity (=FS) | mV/V | 0.9 ± 0.1 | |
| Maximum capacity (Emax) | kg | 0.3 / 0.6 / 1.0 / 1.2 / 1.5 / 3 | |
| Linearity | %FS | ± 0.015 | ± 0.012 |
| Hysteresis | %FS | ± 0.015 | ± 0.012 |
| Repeatability | %FS | ± 0.015 | ± 0.012 |
| Combined error | %FS | ± 0.010 | ± 0.005 |
| Eccentric loading error | %FS | ± 0.0200 | |
| Safe overload | %FS | 120 | |
| Zero balance | %FS | ± 2.0 | |
| Input resistance | Ω | 406 ± 6 | |
| Output resistance | Ω | 350 ± 3 | |
| Insulation resistance | MΩ | ≥ 5000 (50VDC) | |
| Operating temperature | ℃ | -20 ~ +50 | |
| Element material | Aluminium | ||
| Recommended torque on fixation | N.m | 5 | |
| Ingress protection (EN 60529) | IP65 | ||
