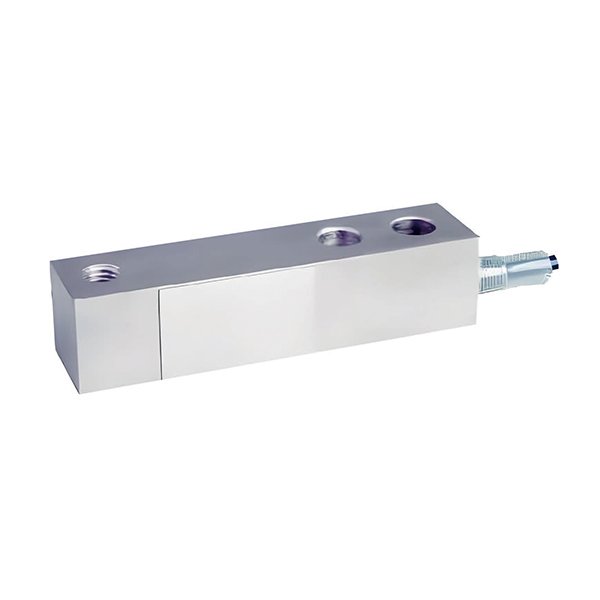

TH8C

TH8C

FEATURES
• Nickel plated alloy steel IP67 shear beam load cell (100
kg, 250kg are bending beam load cells)
• Adhesive sealed
• Suitable platform weighing, bed weighing, etc.
• High accuracy
• High reliability
• Current calibrated (sc-option)

SKU: LOAD CELLS 019 Category:
SPECIFICATION DATA
Parameter Unit C3 C4 C5 A5M B10M
Maximum capacity (Emax) t 0.5 / 1 / 2 / 2.5 / 3 / 4 / 5 / 6 / 7.5
klb 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 7.5 / 10 / 20
Accuracy class C3 C4 C5 A5M B10M
Approvals OIML R60 C3 OIML R60 C4 OIML R60 C5 III 5000 Multiple III L 10000 Multiple
Max. number of LC intervals (nLC) 3000 4000 5000 5000 10000
Ratio of min LC verification interval Y 10000 14000 18000 15000 10000
Combined error %FS ± 0.020 ± 0.018 ± 0.010 ± 0.026 ± 0.050
Creep %FS/30min ± 0.016 ± 0.012 ± 0.010 ± 0.017 ± 0.040
Output sensitivity (=FS) mV/V 3.0 ± 0.003 2.0 ± 0.002
Input resistance Ω 350 ± 3.5
Output resistance Ω 350 ± 3.5
Insulation resistance MΩ ≥ 5000 (50VDC)
Zero balance %FS ± 1.0
Compensated temperature ℃ -10 ~ +40
Operating temperature ℃ -35 ~ +70
Excitation, recommended voltage V 5 ~ 12 (DC)
Excitation maximum V 18 (DC)
Safe overload %FS 150
Ultimate overload %FS 300
Recommended torque on fixation N.m M12: 100, M18: 200, M24: 700
Element material Stainless steel
Ingress protection (EN 60529) IP67
ATEX classification (optional)
II1G Ex ia IIC T4 II1D Ex iaD 20 T73℃ II3G Ex nL II C T4
Note: “S1” Output Sensitivity is 2.0 ± 0.002 mV/V

* Swipe left to view all data →
