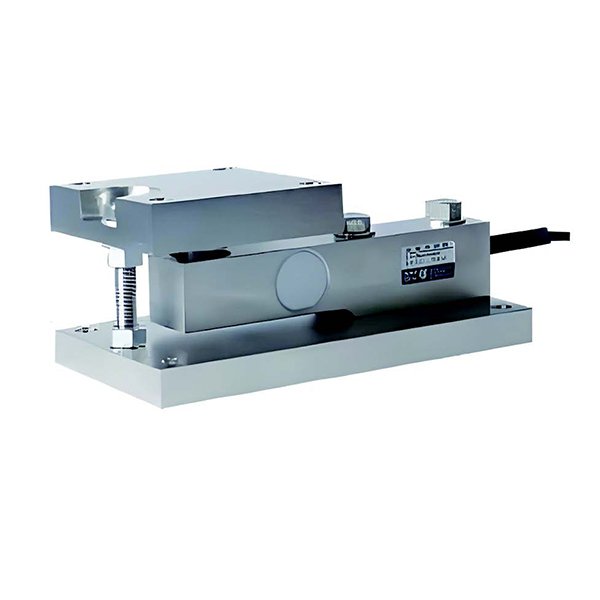

HM-8-401
Alloy steel,assembled with: H8,HM8
SHORT DESCRIPTION
• Compact construction, easy installation
• With anti-reversal ability
• With anti-overloading ability
• With self-aligning ability
• Using under heavy static load or slight dynamic load
| SPECIFICATION | |||||
|---|---|---|---|---|---|
| Capacity | t | 0.5 – 3 | 5 | 10 – 15 | 20 |
| Ultimate load | %FS | 150 | 150 | 150 | 150 |
| Max. Horizontal displacement | mm | ± 2 | ± 2.5 | ± 4 | ± 4 |
| Max. anti-rotation | kN | 3 | 10 | 30 | 50 |
| Material | Alloy steel | ||||
| OPTIONAL TABLE | ||
|---|---|---|
| Part number | Designation | Cutline |
| HM-8-401-1 | Fixed | ○ |
| HM-8-401-2 | Half-floating | ↔ |
| HM-8-401-3 | Floating | ⊕ |
